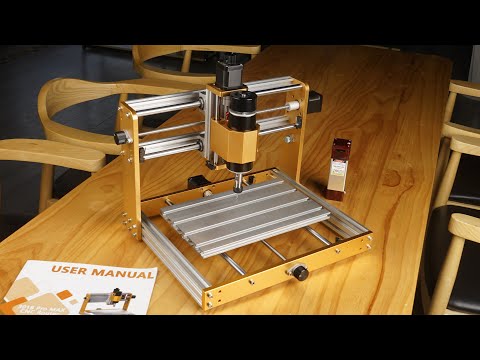

Máquina CNC LUNYEE 3018 PRO MAX 500W Máquina de roteador CNC totalmente em metal
Pairs well with
|
Modelo |
Lunyee 3018 Pro Max |
|
Área de trabalho |
300*180*80mm |
|
Tamanho da máquina |
485*415*374 milímetros |
|
Material da estrutura |
Liga de alumínio + aço carbono |
|
Fuso |
Configuração padrão: 500W 10000r/min |
|
Motor de passo |
Comprimento do eixo de 42 mm 13 mm D φ 8 mm |
|
Precisão da máquina |
±0,1 mm |
|
Velocidade Máxima |
5000 mm/minuto |
|
Velocidade máxima de corte |
2000 mm/minuto |
|
Fonte de energia |
48V 500W |
|
Programas |
Vela, UGS, LaserGRBL, LightBurn |
|
Interruptor de limite |
Suportado (6 no total: X-, X+, Y-, Y+, Z-, Z+) |
|
Laser adaptado |
5,5 W / 10 W |
|
Fuso Adaptado: |
500 W |
|
Tamanho do pacote |
500*445*210 mm |
|
Cor |
Cinza Rosa Dourado |
|
Peso da embalagem |
16KG |
|
Materiais de Aplicação |
Plástico, Madeira, Pedra, Alumínio, Cobre |
Escolher opções
500W Spindle Motor
Whether you’re working with solid wood, metal, acrylic, carbon fiber, or other materials, this powerful spindle ensures your machine can handle the most demanding projects while maintaining precision and efficiency for consistent performance.
Robust All-Metal Structure
The 3018 Pro Max CNC Router machine features a robust all-metal structure, offering excellent stability through the use of reinforced aluminum profiles, ensuring precise and reliable performance.
Wide Material Cutting Applications
The 3018 Pro Max is designed for cutting a variety of materials, including wood, aluminum, brass, carbon fiber, and acrylic. Equipped with a powerful 500W spindle, it delivers greater precision and performance, making it ideal for a wide range of applications and user needs.
Efficient Pre-assembly
More components including the frame, emergency stop button, limit switches and cable management are pre-assembled,This desktop CNC machine can be up and running in just 20 minutes, rather than several hours, making it easy for beginners with no challenges.
Safety
The CNC router is equipped with 6 limit switches and an emergency stop button, ensuring optimal user safety while effectively preventing any potential abnormal machine conditions.
Offline Control
The machine comes with a newly designed offline controller featuring a 1.8-inch display, allowing you to clearly view readings and control the CNC router without needing to connect to a computer. The CNC router can be placed anywhere you like, such as in a garage or workshop.
Upgraded 32-bit Control Board
The new control board is equipped with, but not limited to, an MPG port, a 3-pin laser port, and an air assist pump port. These ports will support more additional components, expanding the functionality of your CNC machine.
Laser Module Available
If you want to upgrade your CNC engraving machine, you can add a matching laser module kit. Compatible 5.5W/10W compressed spot laser modules and fixed-focus laser modules are available. In addition, the control board supports adding an air pump to the laser module for faster and deeper cutting.
Support:
Email Support
One-year Warranty For Free
Compatible with GRBL-Base CAM/CNC Software
| Model Name | LUNYEE 3018PRO MAX |
| Work Area |
300 x 180 x 80mm (11.81 x 7.09 x 3.15 inch) |
| Overall Dimensions | 422 x 414 x 350mm (16.61 x 16.30 x 13.78 inch) |
| Control Board Compatibility | 4-axis 5.0 GRBL 1.1f |
| MCU | 32-Bit |
| Max Speed | 5000mm/min |
| Control Software | Software Based on GRBL Firmware, e.g. Fusion360, Easel, Candle, UGS, LaserGRBL, LightBurn |
| Body Material | Aluminum Alloy & Carbon Steel |
| Accuracy | ±0.1mm |
| Motion System | Optical axis：X, Y, Z Lead screw：X, Y, Z |
| Spindle Motor | 500W Spindle Motor |
| Stepper Motor | NEMA 17, Stepper Motor |
| Safety | XYZ Limit Switch & Emergency Stop Switch |
| Power Supply | AC110/230V (Switch Power) |
| Net Weight | 13kg (29 lb) |
Mechanically a solid little machine
Received the router and put it together. It assembles easily and is fairly intuitive. Mechanically it is built well. The X axis has linear ways which I think will help the rigidity for milling aluminium.
Great hobby, easy to get started with this well built router.
I needed a hobby for the winter and this is it. I have worked around manufacturing for most of my life so I am familiar with machining but this was my first jump into something like this. My journey has just started but I wanted to share a few things that I like about this router and a few things that I learned on the way. Equipment itself - Overall it is heavier than I was expecting - very solid and well built. The components are easily replaceable for any future upgrades or maintenance needed. - The mechanical assembly was very easy. Most of the pieces are prebuilt so it is just attaching the gantry, hang the power supply and screw on the circuit board. One tip is to use a square/right angle to make sure the gantry is perfectly square to the base. - There were no wiring instructions but I went onto YouTube and there are a few videos that show it well. All total it didn't take much time at all to assemble and the wire paths look nice compared to pictures of other similar routers. - Software - There was a thumb drive that came with it but I personally could not get anything to work from it. I went online and downloaded EASEL (Drawing program) and UGS (Sends the program to the router). There is also Candle software (Sends the program to the router) that also seemed to work as well. Two things you need to know is your COM port and your version of windows (64bit vs 32bit). These are all free software, very intuitive and have good videos on YouTube to get started. - Spindle/solid z axis. I'm glad I went with this unit that already has the larger 500W spindle for the extra power. I was comparing this unit to other competitor products and this had the upgrades that you would do anyway. The z axis is solid and has plenty of travel for what I need. I'm mostly cutting 6" wide by 1/2" thick boards but you could do 2" thick material pretty easily. The cutting motion is very solid and smooth. This type of machining is not jerky like a 3D printer. - Customer service. I did have one component that needed to be replaced. I saw it online for $9 but sent an email to Lunyee and they responded the next day and had me running very quickly. Most of the components on this machine can be replaced pretty easily but it is nice to know that there is great customer service available if there is an issue I can't resolve myself.
