LUNYEE Laser Engraver Module, 20000mW(20W) Optical Power

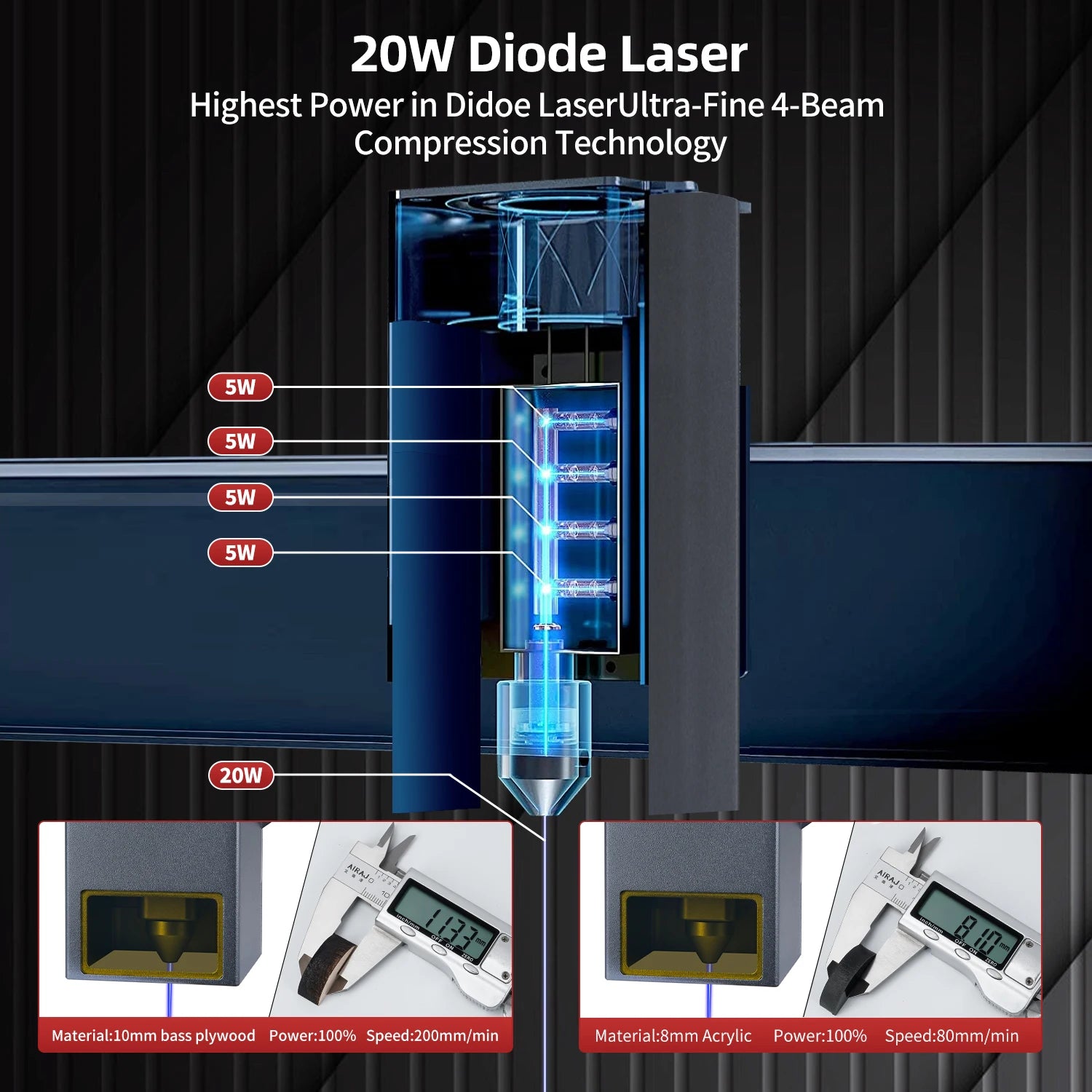

【4 Beam compression technology, 20W ultra-strong optical power laser module】
-

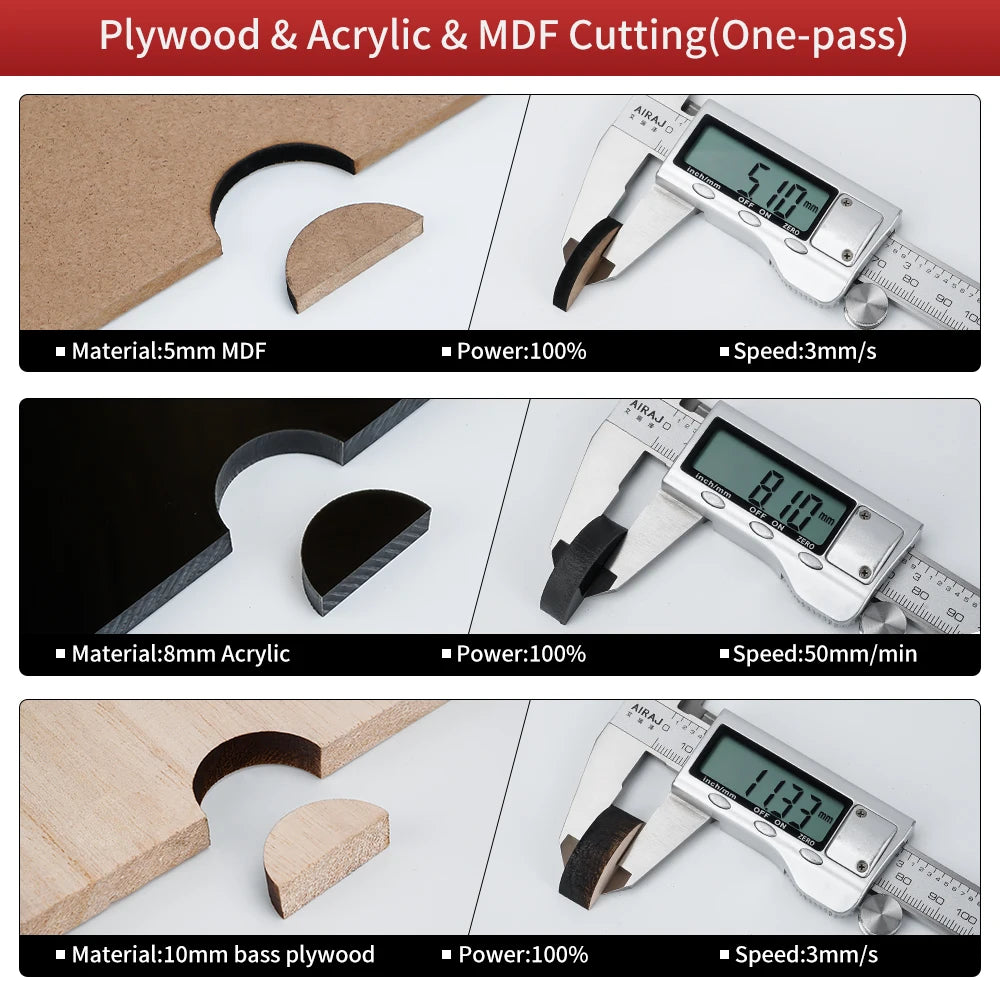

Cut through 10mm bass plywood by one pass
-
Cut through 20mm pine plywood by 2 passes
-
Cut through 5mm MDF by one pass
-
Cut through 8mm black acrylic by one Pass
-

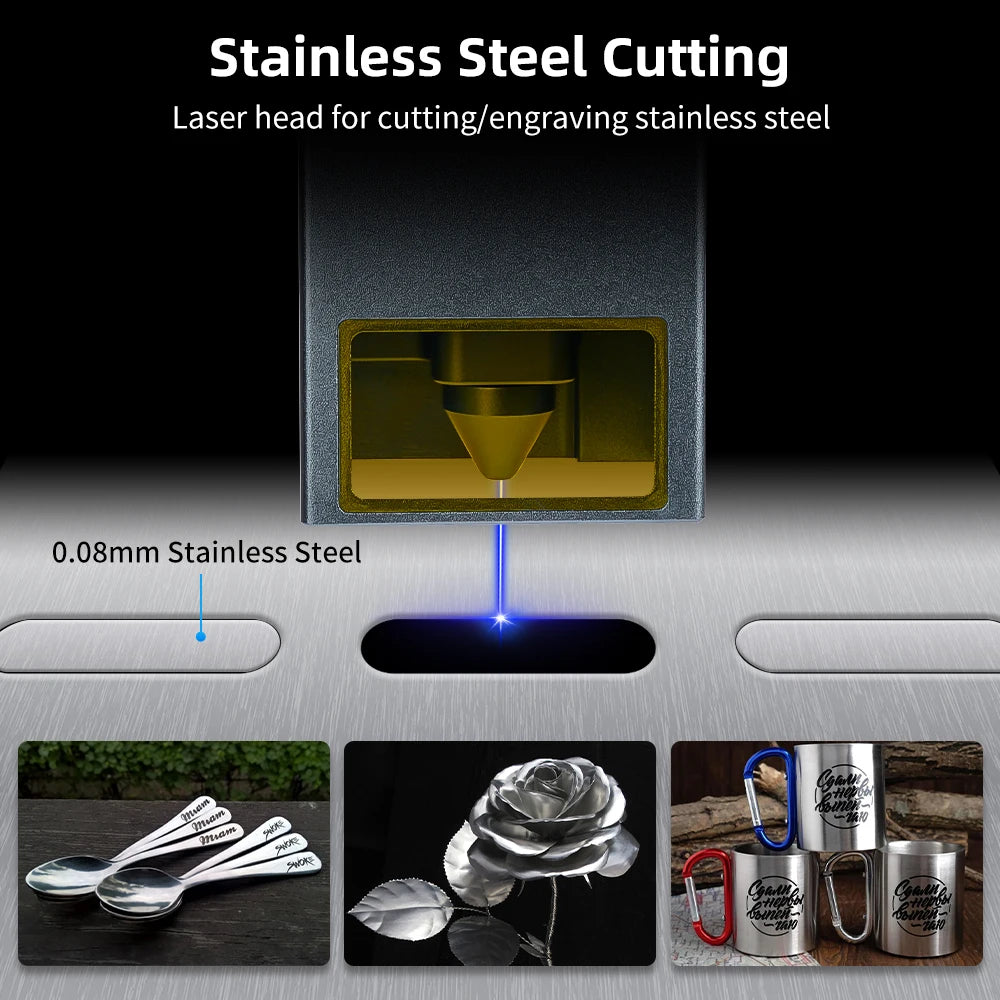

Cut through 0.1mm 304 stainless steel by one Pass

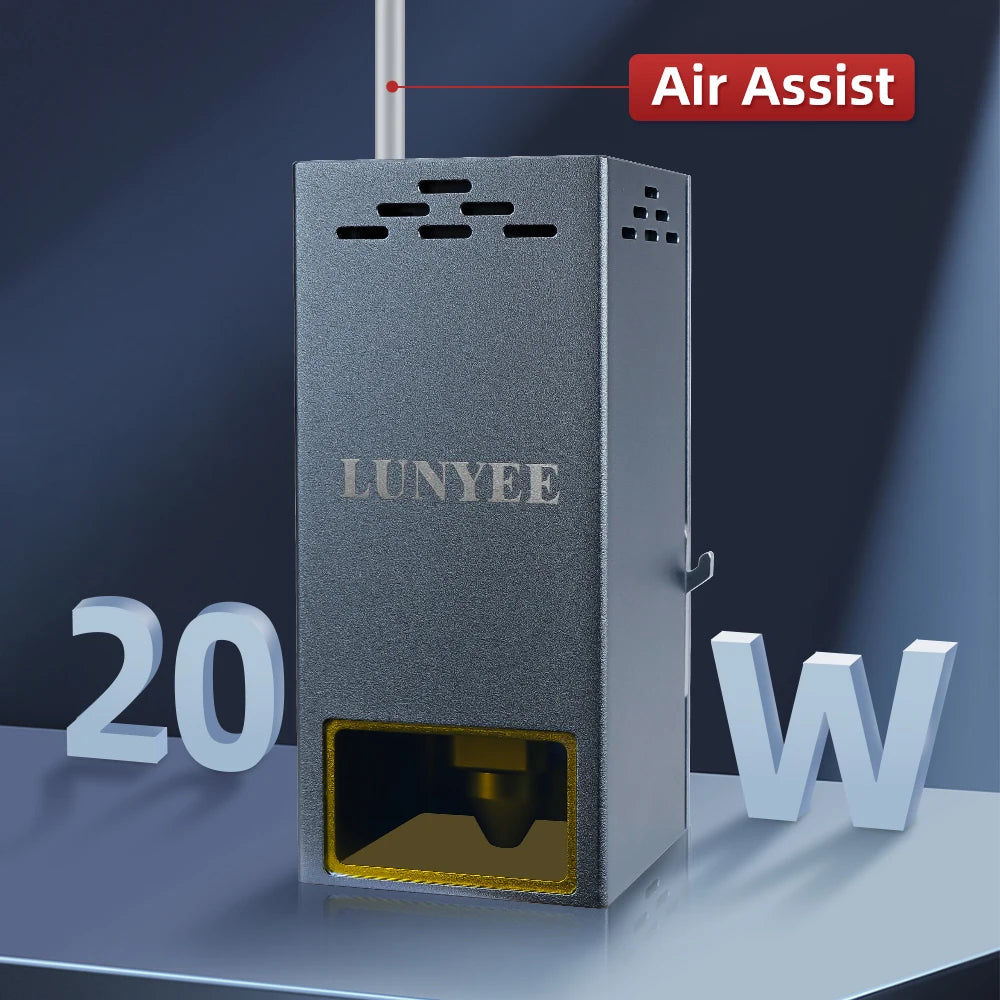

【With air nozzle to get clean-cut edges, improve cutting performance 】

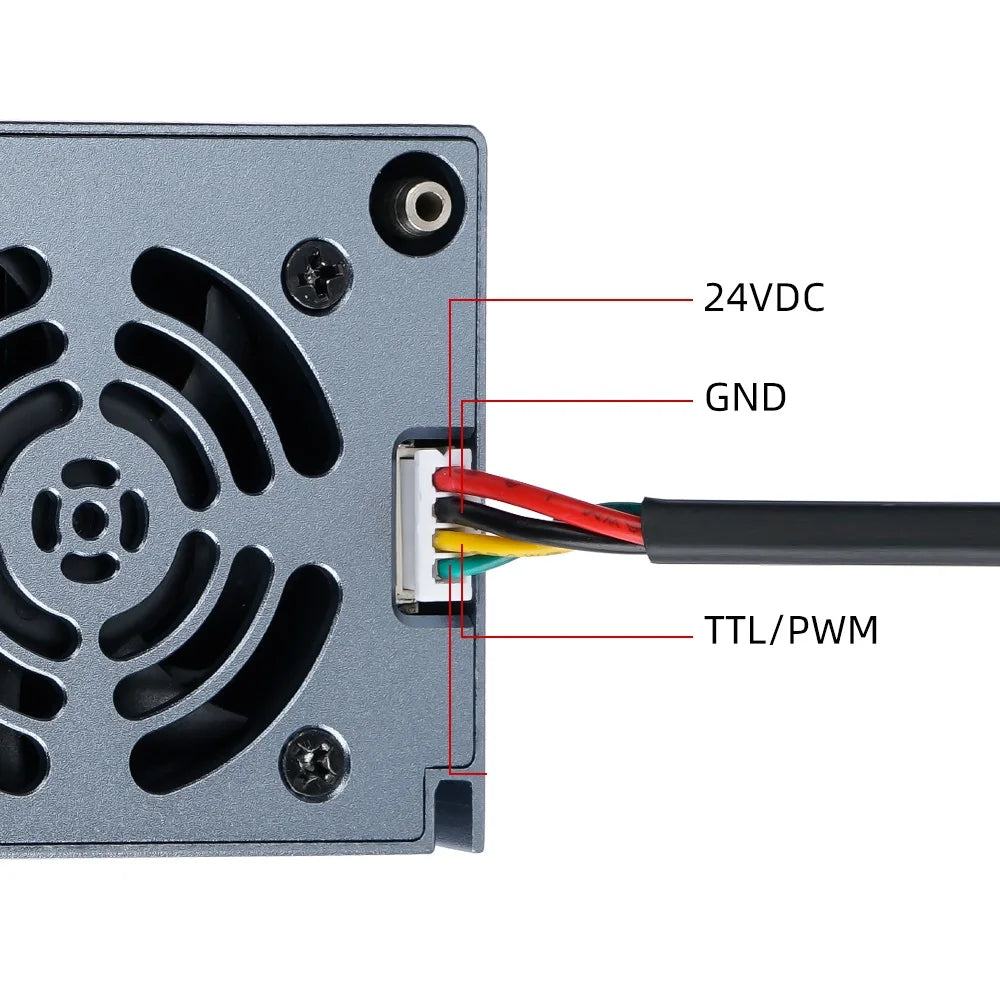

【Support digital（TTL/PWM）】

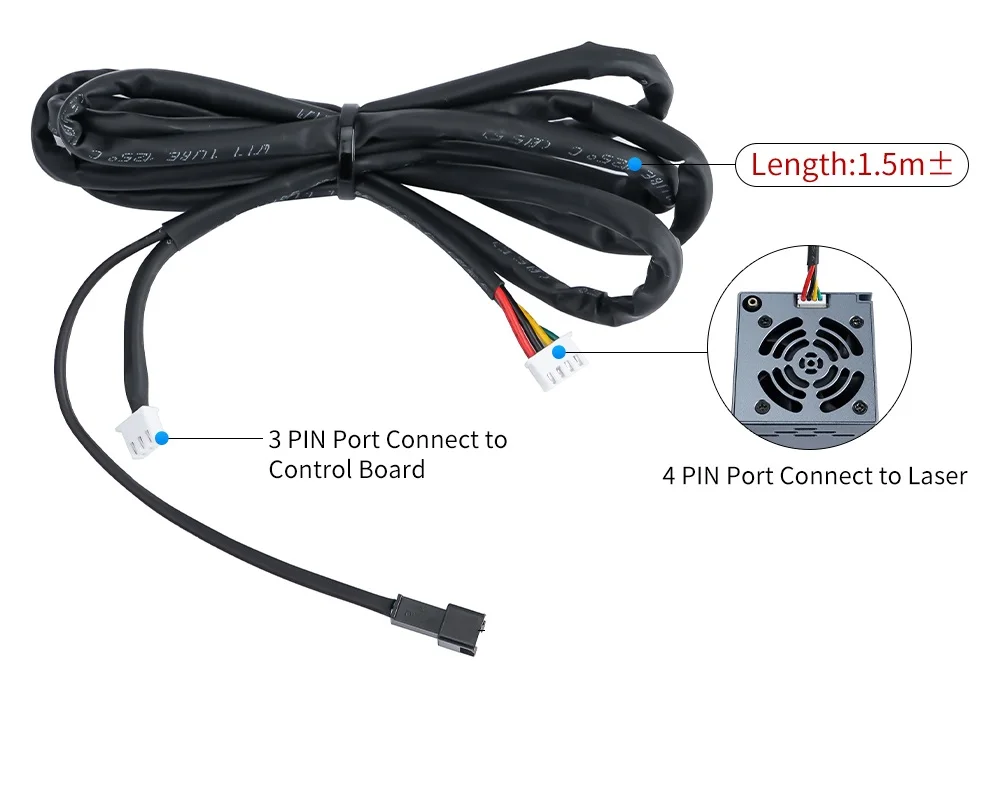

【The length of the laser line is 80cm, the terminals are 4P-3P, 3P is connected to the control board, and 4p is connected to the laser】
【Excellent heat dissipation design, keep stable cutting ability and extend service life】
【Only 300~400mw power decrease with 100% power output in 30mins】

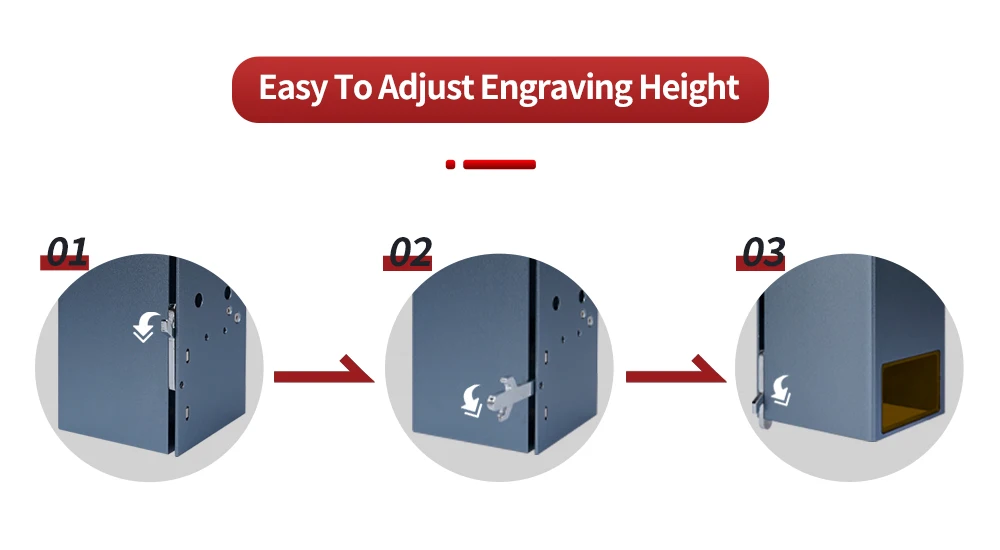

【Include a 33mm Lifting ,compatible with various DIY cutting engraving machines】
-
Mode:LM-L20
-
Optical Output:19~21W
-
Wavelength:455（±5mm）
-
Laser Spot :0.08* 0.10mm
-
Input Voltage/Current:24V=3A
-
Light Path: Focused Beam
-
Laser Beam Mode:Dotted
-
Laser Diode:4 Beam
-
Focal Length:40（±1mm）
-
Laser Cable:80cm 3p-4p
-
Working Mode:Pulse work
-
Working Temperature:0℃ to 70℃
-
Working Time: 10000H
-

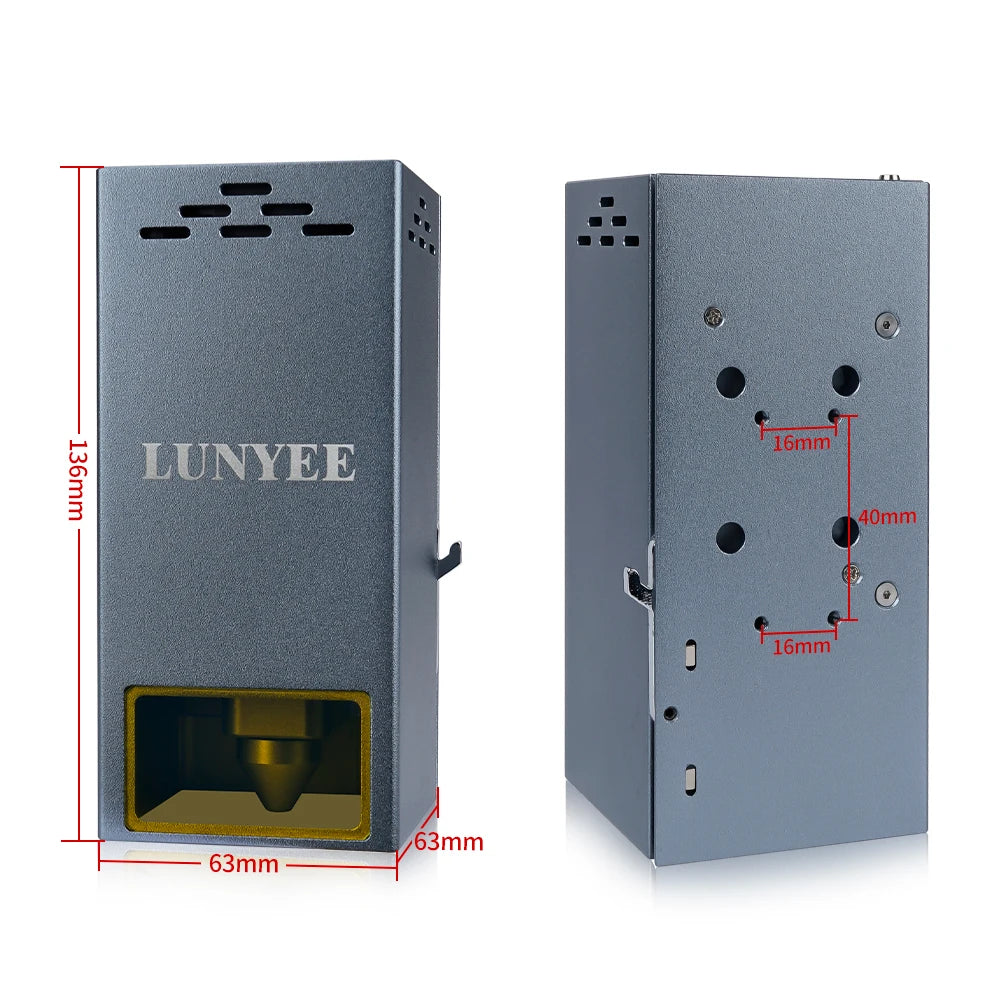

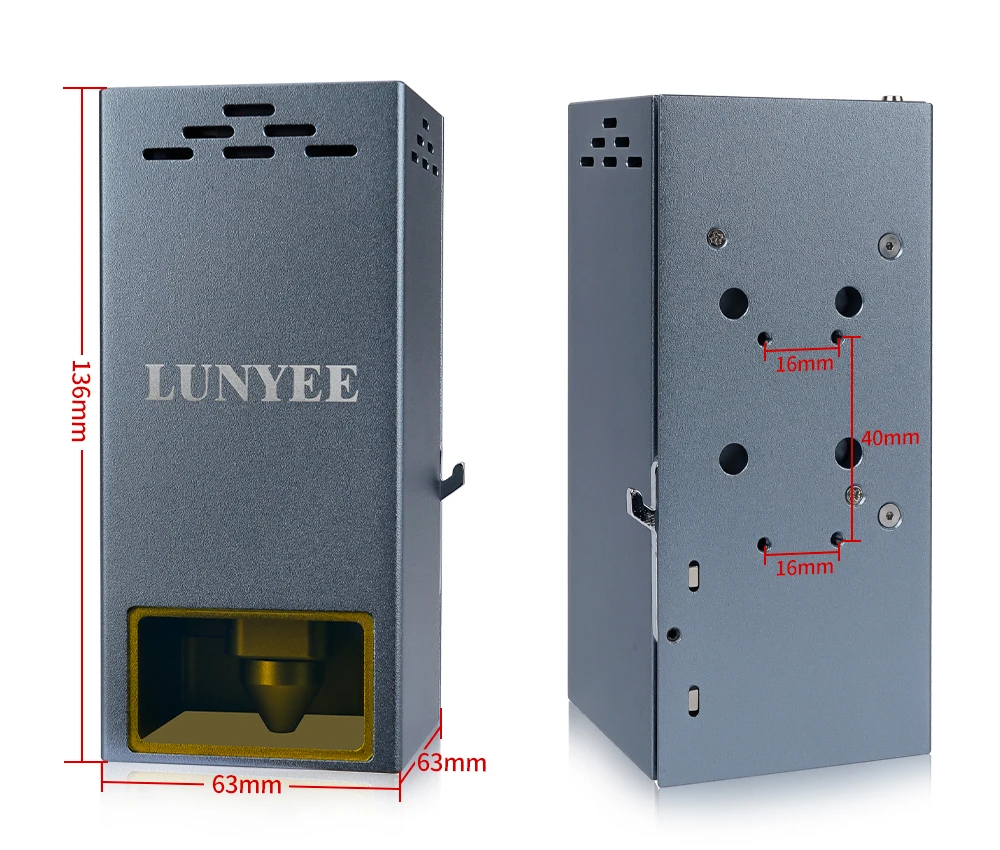

Housing size:66*68*149mm
-
Optical Lens:φ10/glass
-

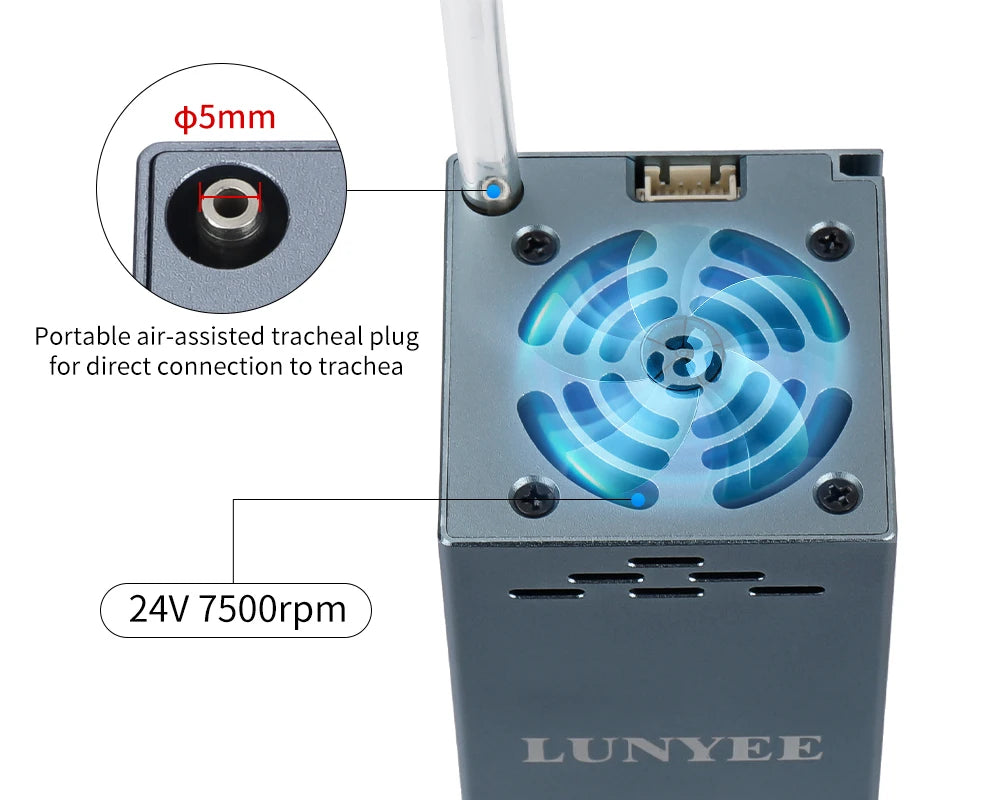

Fan:24V 7500rpm
-
Product Material: Aluminum 6061
-
Weight:0.7kg

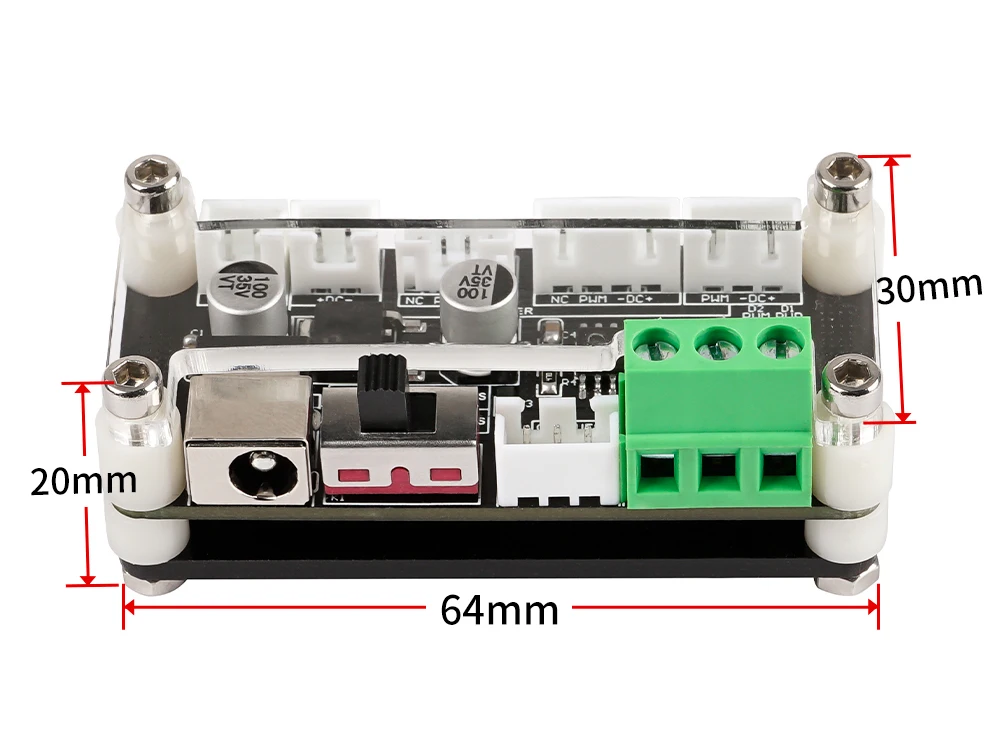

Free lifting module, compatible with various types of laser engraving machines

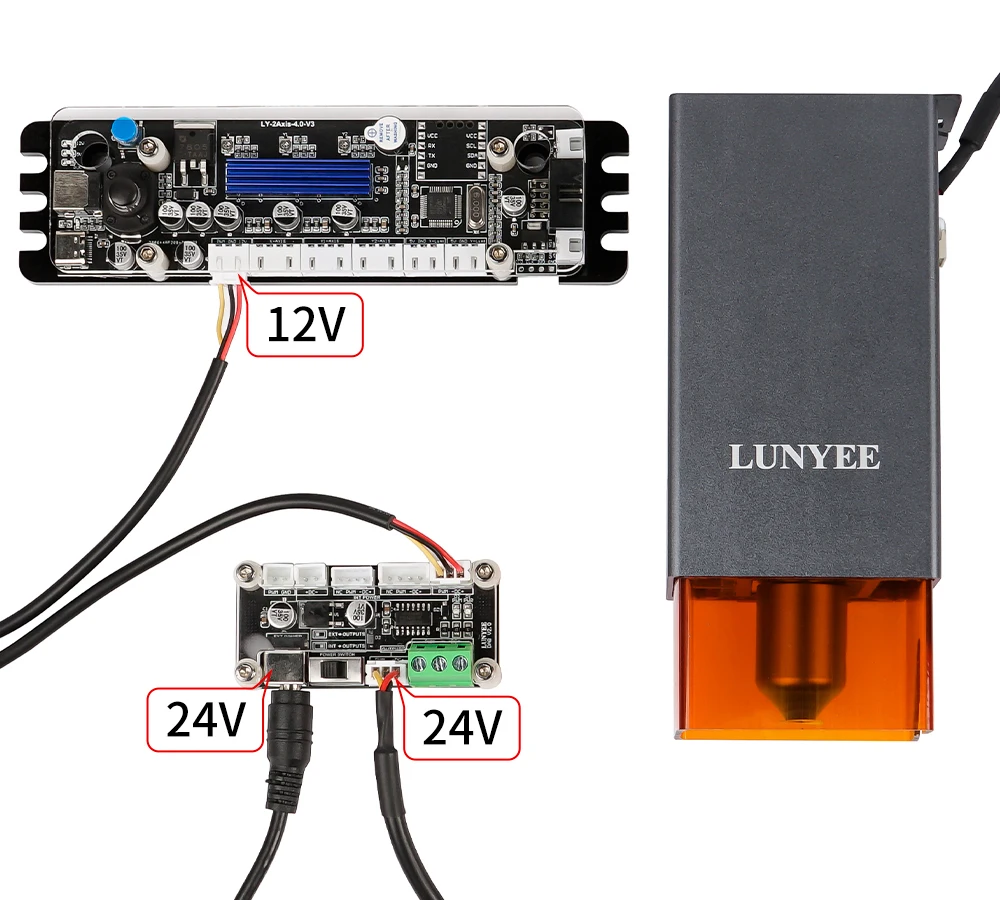

【Voltage Conversion】
-

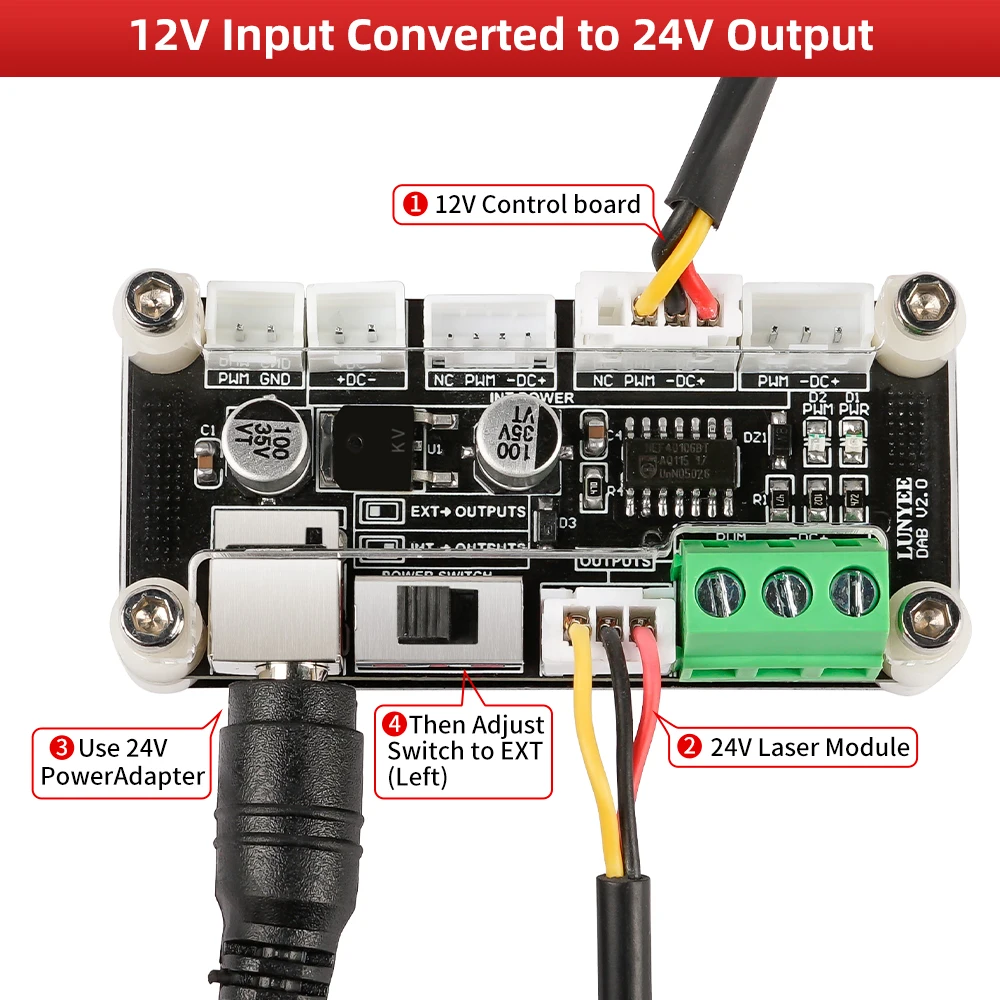

Convert 12V To 24V, Or Convert 24V To 12V

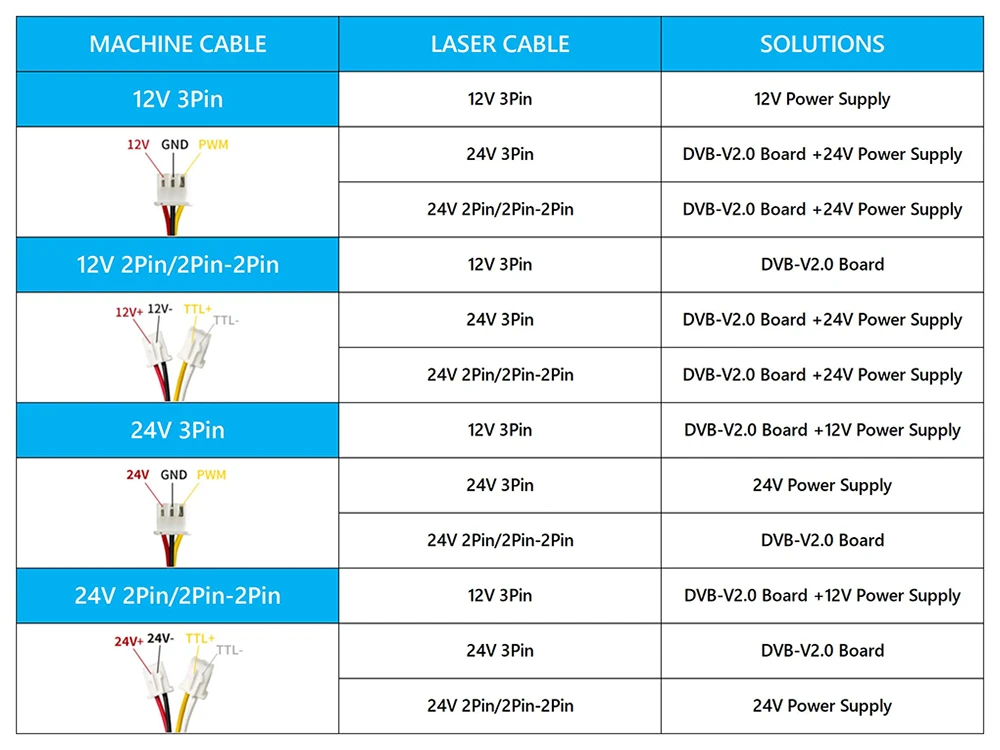

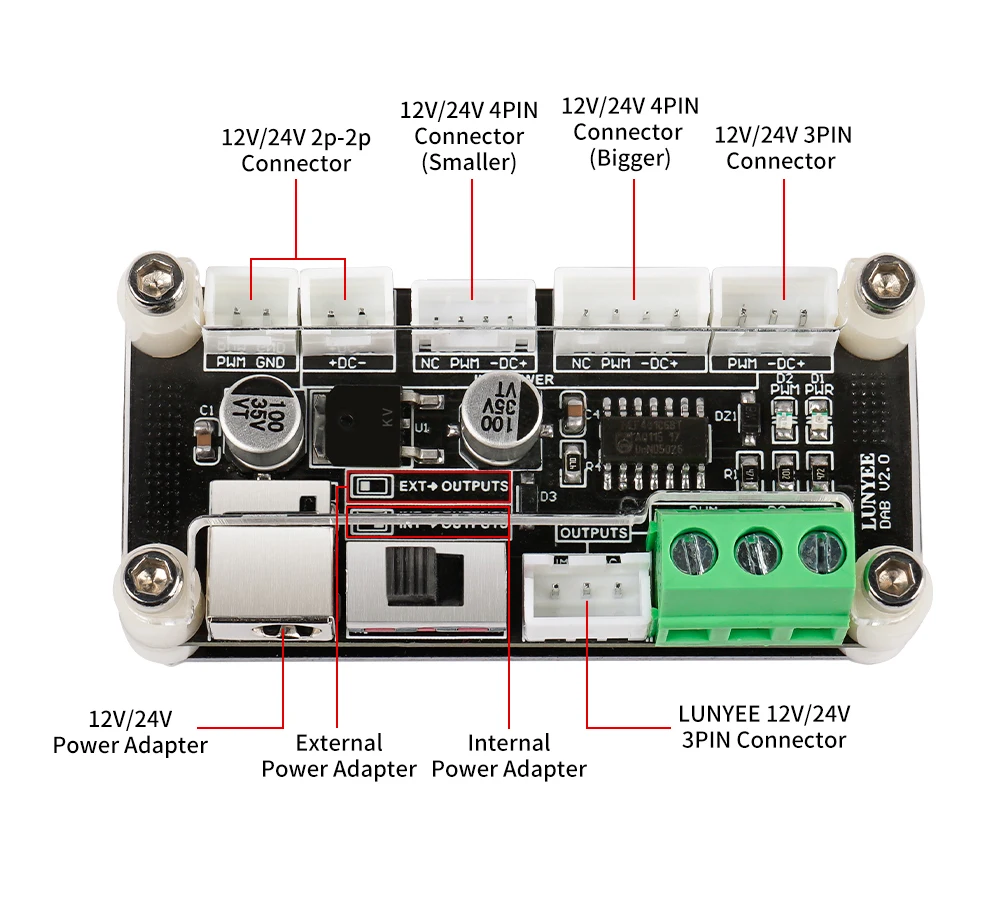

【Port Conversion】
-
2pin, 3pin, 4pin Input Can Be Converted To 3pin Output
In This Way, Engraving Machines And Lasers With Different Voltages And Interfaces Can Be Compatible With Each Other
CAUTIONS:
-
The laser light emitted by the laser module is likely to injure persons'eye, so do not directly gaze its end surface and wear appropriate safety glasses to prevent laser light when it is working.
-
Laser module needs an appropriate laser driver(PCB). When the laser module connects with power supply, please set the output voltage to zero. The adjustment of the current should be slowly increased or decrease to avoid damaging the device.
-

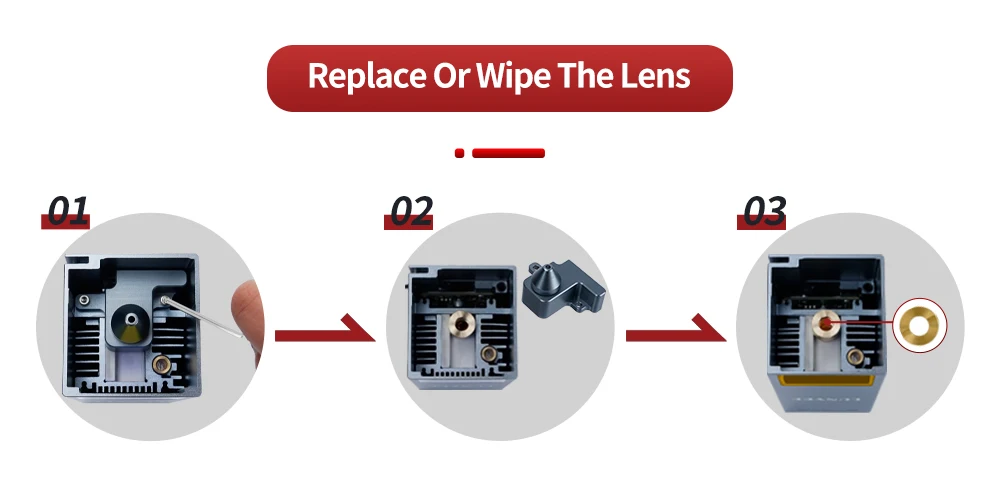

Keep the device working or storing in a dry environment. The anti-dust grade is over one million, in order to prevent dust inside the lens to affect the laser dot shape.
-
Working at high temperatures will increase the threshold current, reduce conversion efficiency and speed up the aging of the device.
-
When output power is higher than it's specific parameter of operation, it will accelerate the aging of the device.
-
When the operation temperature of the laser diode is over 70degree, please do well heat dissipation of it.
-
This laser module is an electrostatic sensitive device. Please make sure ground yourself or wear an antistatic wrist strap before you take it
