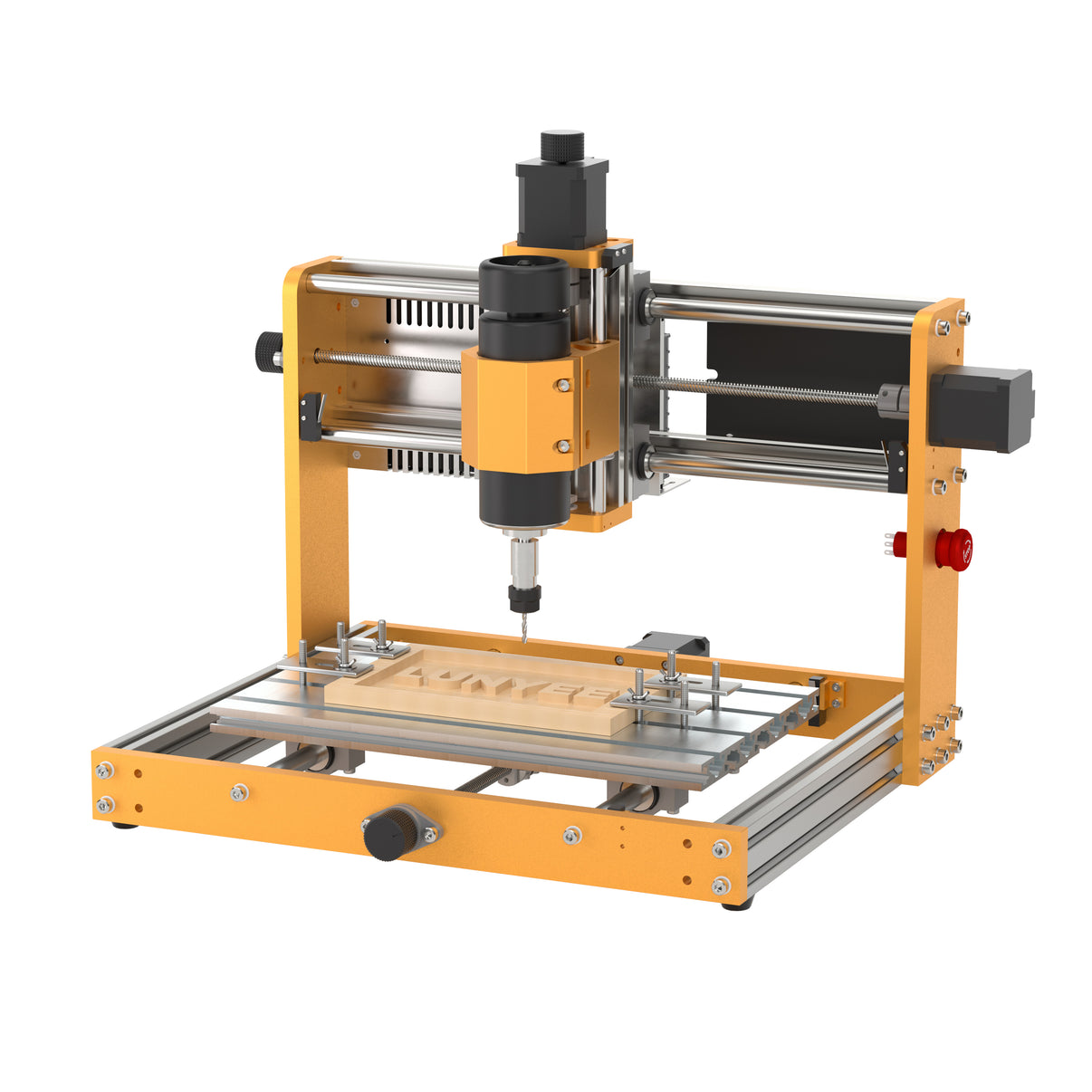

LUNYEE 3018 PRO MAX CNC Machine 500W All-Metal CNC Router Machine
【Full Metal Structure】 The all-metal design ensures durability and stability, using reinforced aluminum that withstands heavy loads and harsh conditions.
【Compatible with Industry Software】 Features a 32-bit motherboard with GRBL F1.1 firmware, compatible with various design software. Easy to use with included setup instructions.
【Safety Features】 Equipped with six limit switches and an emergency stop switch for user and workpiece safety.
【Standard One Year Warranty】 LUNYEE warrants a product to be free from defects in workmanship and materials, under normal indoor use and conditions, for a period of one year for the original invoice date.
【Manufacturer Direct Pricing】 As the manufacturer, we offer competitive prices. Contact us anytime for technical support regarding CNC and laser machines.
| Model | Lunyee 3018 Pro Max |
|---|---|
| Working area | 300*180*80mm |
| Machine Size | 485*415*374mm |
| Frame Material | Aluminum Alloy + Carbon Steel |
| Spindle | Standard configuration: 500W 10000r/min |
| Step Motor | 42mm shaft length 13mm D φ 8mm |
| Machine Accuracy | ±0.1mm |
| Max Speed | 5000mm/min |
| Max Cutting Speed | 2000mm/min |
| Power Supply | 48V 500W |
| Software | Candle, UGS, LaserGRBL, LightBurn |
| Limit Switch | Supported(6 in total: X-, X+, Y-, Y+, Z-, Z+) |
| Adapted laser | 5.5W / 10W |
| Adapted Spindle: | 500W |
| Package Size | 500*445*210mm |
| Color | Golden Pink Grey |
| Package Weight | 16KG |
| Application Materials | Plastic, Wood, Stone, Aluminum, Copper |
Choose options
Hong Kong SAR ChinaMechanically a solid little machine
Received the router and put it together. It assembles easily and is fairly intuitive. Mechanically it is built well. The X axis has linear ways which I think will help the rigidity for milling aluminium.
Hong Kong SAR ChinaGreat hobby, easy to get started with this well built router.
I needed a hobby for the winter and this is it. I have worked around manufacturing for most of my life so I am familiar with machining but this was my first jump into something like this. My journey has just started but I wanted to share a few things that I like about this router and a few things that I learned on the way. Equipment itself - Overall it is heavier than I was expecting - very solid and well built. The components are easily replaceable for any future upgrades or maintenance needed. - The mechanical assembly was very easy. Most of the pieces are prebuilt so it is just attaching the gantry, hang the power supply and screw on the circuit board. One tip is to use a square/right angle to make sure the gantry is perfectly square to the base. - There were no wiring instructions but I went onto YouTube and there are a few videos that show it well. All total it didn't take much time at all to assemble and the wire paths look nice compared to pictures of other similar routers. - Software - There was a thumb drive that came with it but I personally could not get anything to work from it. I went online and downloaded EASEL (Drawing program) and UGS (Sends the program to the router). There is also Candle software (Sends the program to the router) that also seemed to work as well. Two things you need to know is your COM port and your version of windows (64bit vs 32bit). These are all free software, very intuitive and have good videos on YouTube to get started. - Spindle/solid z axis. I'm glad I went with this unit that already has the larger 500W spindle for the extra power. I was comparing this unit to other competitor products and this had the upgrades that you would do anyway. The z axis is solid and has plenty of travel for what I need. I'm mostly cutting 6" wide by 1/2" thick boards but you could do 2" thick material pretty easily. The cutting motion is very solid and smooth. This type of machining is not jerky like a 3D printer. - Customer service. I did have one component that needed to be replaced. I saw it online for $9 but sent an email to Lunyee and they responded the next day and had me running very quickly. Most of the components on this machine can be replaced pretty easily but it is nice to know that there is great customer service available if there is an issue I can't resolve myself.
